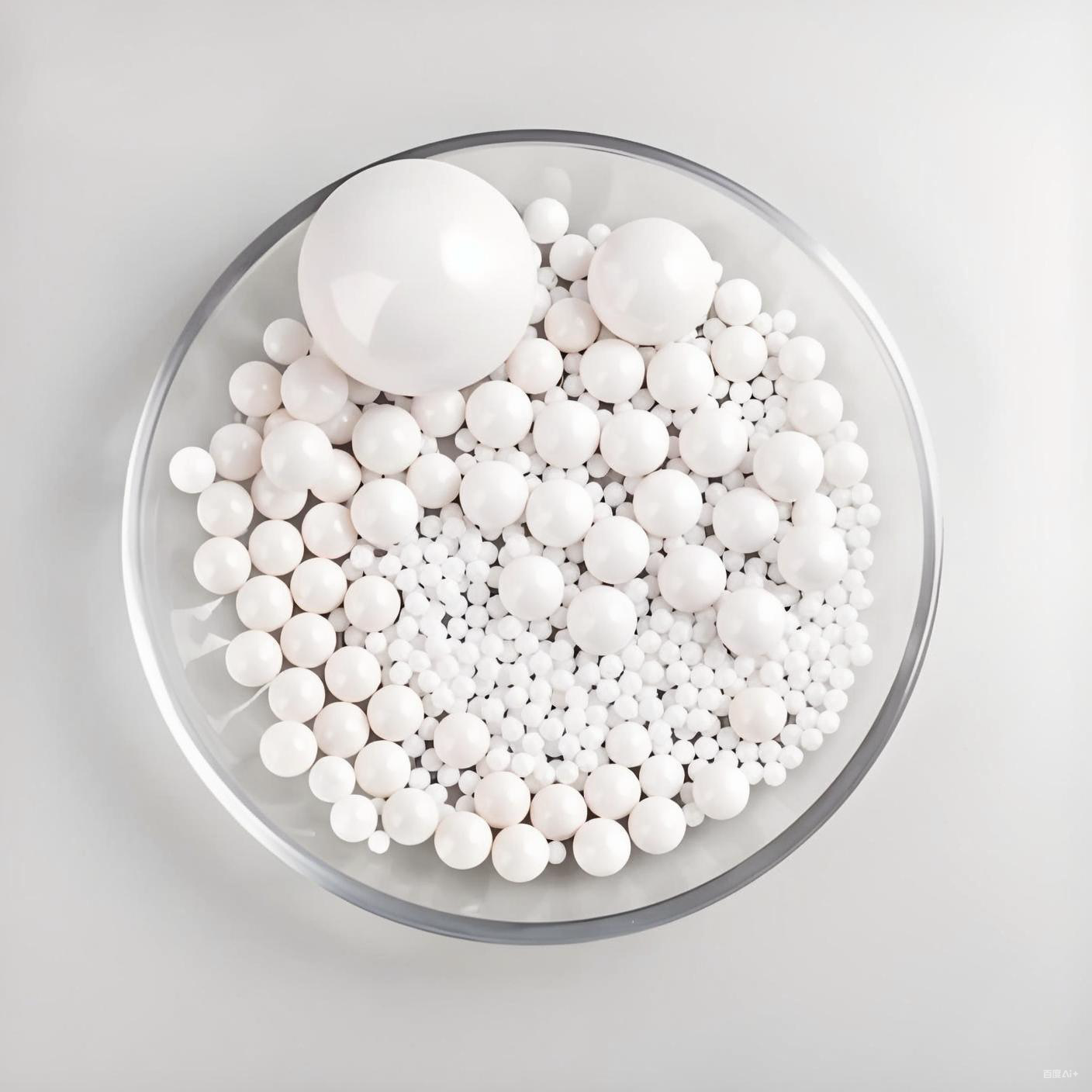

99.5% High Purity Alumina Grinding Bead for Pigment Dispersion

Its core advantages for pigment dispersion lie in four targeted performance traits:

1. Ultra-Low Impurity to Preserve Pigment Color Integrity: With total impurities strictly controlled (Fe₂O₃ ≤0.05%, SiO₂ ≤0.3%, Na₂O ≤0.1%, other trace elements ≤0.05%), the grinding bead eliminates the risk of impurity-induced color defects—such as iron oxide (Fe₂O₃) dulling bright organic pigments (e.g., phthalocyanine blue), silica (SiO₂) reducing the transparency of carbon black, or alkali metals (Na₂O) altering the hue of inorganic pigments (e.g., titanium dioxide). Unlike low-purity alumina beads (impurities ≥3%) or zirconia beads (which may leach zirconium to shift pigment tone), our 99.5% purity bead ensures pigments retain their designed color value (ΔE ≤0.3, measured via spectrophotometer) and tinting strength (variation ≤2%) across batches;
2. High Hardness & Wear Resistance for Efficient Dispersion: Boasting a Vickers hardness (HV) of 1650–1750 and bulk density of 3.70–3.75 g/cm³, the bead generates strong shear and impact forces to break down pigment agglomerates—reducing pigment particle size from 5–30μm (raw pigment) to 0.5–2μm (optimal for dispersion) in 25% less time than standard ceramic beads. Its ultra-low wear rate (≤0.006% per 1000 hours of milling) minimizes bead debris in pigment pastes, eliminating the need for post-dispersion filtration (a major source of pigment loss) and reducing pigment waste by 12%–18%;
3. Superior Sphericity for Uniform Particle Distribution: With a sphericity of ≥0.98 (deviation ≤0.03mm) and tight size tolerance (±0.08mm), the beads roll smoothly in dispersion equipment (e.g., horizontal bead mills, vertical attritors, high-shear mixers). This ensures even contact with pigment particles, avoiding over-dispersion (which reduces tinting strength) or under-dispersion (which causes color streaks in final products). A paint manufacturer using our beads achieved a pigment particle size distribution (PSD) with span ≤1.2 (span = (D90-D10)/D50), ensuring consistent color in architectural coatings;
4. Chemical Inertness for Versatile Pigment Compatibility: The 99.5% high-purity alumina material is chemically inert to all common pigment dispersion components—including organic solvents (e.g., xylene, ethanol), water-based binders (e.g., acrylic latex), dispersants (e.g., polycarboxylates), and pH modifiers (pH 4–10). It resists corrosion from acidic/alkaline dispersion media and does not react with reactive pigments (e.g., iron oxide, chrome yellow), maintaining performance over 400+ dispersion cycles without altering pigment chemistry.

Compliant with industry standards (ISO 13317-1 for milling media, ASTM C1301 for alumina ceramics, and REACH for restricted substances), this grinding bead is ideal for pigment dispersion in coatings, inks, plastics, and cosmetics—ensuring final products meet global color quality and safety standards.

Technical Specifications

Application Industries

Our 99.5% High Purity Alumina Grinding Bead is tailored to solve pigment dispersion challenges across key sectors:

1. Coatings Industry (Architectural, Automotive, Industrial): Used for dispersing pigments in water-based and solvent-based coatings—e.g., titanium dioxide (white) in architectural latex paint, iron oxide (red/brown) in industrial maintenance coatings, and metallic pigments (aluminum flake) in automotive topcoats. The bead’s low impurity ensures consistent color (ΔE ≤0.3) across coating batches, and its high wear resistance reduces downtime for bead replacement. A European coating manufacturer eliminated "color drift" in its exterior wall paints, improving customer satisfaction by 30%;
2. Ink Industry (Packaging, Digital, Screen Printing): Applied in dispersing pigments for flexographic inks (e.g., carbon black in packaging inks), digital printing inks (e.g., phthalocyanine green in UV-curable inks), and screen printing inks (e.g., cadmium-free yellow in textile inks). The bead’s uniform sphericity achieves a fine PSD (D50=0.8–1.5μm), ensuring sharp print resolution and fast drying. A Chinese ink producer reduced ink "blocking" (pigment agglomeration in printheads) by 40%, meeting ISO 2846-1 ink performance standards;
3. Plastics Industry (Masterbatches, Colored Polymers): Used for dispersing pigments in plastic masterbatches—e.g., organic red in polyethylene (PE) masterbatches, carbon black in polypropylene (PP) masterbatches, and fluorescent pigments in polyvinyl chloride (PVC) masterbatches. The bead’s chemical inertness avoids reaction with plastic resins (e.g., no yellowing of PE), and its low wear ensures no contamination of food-contact plastics. A North American masterbatch producer achieved FDA compliance for food-contact plastic colorants, expanding into the packaging market;
4. Cosmetics Industry (Color Cosmetics, Personal Care): Employed in dispersing pigments in makeup products—e.g., iron oxide (brown) in foundation, mica (shimmer) in eyeshadow, and ultramarine (blue) in nail polish. The bead’s ultra-low impurity (Fe₂O₃ ≤0.05%) meets EU Cosmetics Regulation (EC) No 1223/2009 (restricting heavy metals), and its smooth surface avoids pigment abrasion (which reduces shimmer in mica). A Korean cosmetics brand enhanced the color payoff of its eyeshadows, increasing product sales by 25%;
5. Ceramic & Glass Industry (Glaze Pigments, Glass Colorants): Used for dispersing inorganic pigments in ceramic glazes (e.g., chrome oxide green in sanitary ware glazes) and glass colorants (e.g., cobalt oxide blue in decorative glass). The bead’s high temperature resistance (up to 250℃) withstands the high-viscosity dispersion of glaze pigments, and its inertness ensures no color shifting during glass firing. A ceramic glaze manufacturer reduced "color streaks" in its glazed sanitary ware by 50%, meeting EN 998 ceramic performance standards.

Frequently Asked Questions (FAQs)

Q1: Why is 99.5% high-purity alumina ideal for pigment dispersion, compared to lower-purity alumina or zirconia beads?

A1: It addresses pigment dispersion’s unique color and purity demands that conventional beads cannot meet: (1) Color Preservation: Lower-purity alumina beads (Al₂O₃ ≤95%) contain high levels of iron (Fe₂O₃ ≥0.5%) and silica (SiO₂ ≥2%), which leach into pigment pastes—for example, iron oxide turns bright blue pigments (phthalocyanine blue) dull gray, while silica reduces the transparency of carbon black in inks. Zirconia beads may leach zirconium (≥1ppm), which shifts the hue of red pigments (e.g., quinacridone red) to orange. Our 99.5% purity bead’s ≤0.05% Fe₂O₃ and ≤0.3% SiO₂ ensure no color distortion; (2) Dispersion Efficiency: Zirconia beads have lower hardness (HV 1200–1400) than 99.5% alumina (HV 1650–1750), leading to slower agglomerate breakdown—adding 30% more dispersion time for organic pigments. Our bead’s higher hardness cuts dispersion time while maintaining a narrow PSD (span ≤1.2); (3) Cost-Effectiveness: While 99.5% alumina has a higher upfront cost than lower-purity beads, its 4–6x longer service life (400+ cycles vs. 70–100 cycles) and 12%–18% lower pigment waste result in 25%–30% lower total cost of ownership for pigment processors.

Q2: What size of 99.5% alumina grinding bead is best for different types of pigments?

A2: Bead size selection depends on pigment type, initial particle size, and dispersion equipment—follow these guidelines: (1) Organic Pigments (e.g., phthalocyanine blue, quinacridone red): Typically have smaller initial agglomerates (5–15μm) and require finer dispersion (D50=0.5–1.5μm). Use small beads (0.8–3mm) for high-speed bead mills—this ensures maximum shear force without over-dispersion. For example, a 1.5mm bead is ideal for dispersing phthalocyanine green in UV-curable inks, achieving D50=1.0μm; (2) Inorganic Pigments (e.g., titanium dioxide, iron oxide): Have larger initial agglomerates (10–30μm) and require stronger impact. Use medium beads (3–8mm) for horizontal attritors—this breaks down hard agglomerates while maintaining a narrow PSD. A 5mm bead works well for dispersing titanium dioxide in water-based coatings, reducing D50 from 20μm to 1.8μm; (3) Metallic Pigments (e.g., aluminum flake, bronze powder): Are delicate and prone to deformation—use larger beads (8–15mm) with lower dispersion speed to avoid damaging the flake structure. A 10mm bead preserves the aspect ratio of aluminum flake in automotive coatings, ensuring optimal metallic shimmer; (4) Carbon Black: Requires ultra-fine dispersion (D50=0.1–0.5μm) to achieve high blackness—use very small beads (0.3–1mm) in high-shear bead mills. A 0.8mm bead delivers carbon black PSD with D50=0.3μm, ideal for packaging inks.

Q3: How to optimize dispersion parameters (speed, time, solid content) when using this bead to avoid pigment damage?

A3: Optimize parameters to balance dispersion efficiency and pigment integrity: (1) Dispersion Speed: Match speed to bead size and pigment type—for small beads (0.8–3mm) and organic pigments, use high speed (1500–3000 rpm for bead mills) to generate shear; for large beads (8–15mm) and metallic pigments, use low speed (500–1000 rpm) to avoid flake deformation. A paint manufacturer reduced aluminum flake damage by 50% by lowering speed from 2000 rpm to 800 rpm; (2) Dispersion Time: Stop milling once the target PSD is reached (measured via laser diffraction) to avoid over-dispersion—over-dispersed organic pigments lose tinting strength (e.g., 20% strength loss if milled 50% longer than needed). Use in-line PSD monitoring to automate stop times; (3) Solid Content: Maintain pigment solid content at 40%–60%—too low (≤30%) increases bead-bead friction (accelerating wear), too high (≥70%) reduces flow (causing uneven dispersion). A masterbatch producer optimized solid content from 35% to 50%, cutting dispersion time by 20% and reducing bead wear by 15%; (4) Dispersant Use: Add 1%–3% dispersant (based on pigment weight) to reduce pigment-pigment adhesion—this lowers the required shear force, minimizing bead wear and pigment damage. For example, adding polycarboxylate dispersant to iron oxide dispersion reduced dispersion time by 25%.

Q4: Does this grinding bead meet safety standards for food-contact or cosmetic pigments?

A4: Yes—our 99.5% high-purity alumina grinding bead is engineered to meet the strictest safety standards for sensitive applications: (1) Food-Contact Pigments: Complies with FDA 21 CFR Part 178.3297 (for food-contact materials) and EU Regulation (EC) No 10/2011 (for plastic materials and articles intended to come into contact with food). Testing shows no detectable leachables (≤0.1ppm) in pigment masterbatches used for food packaging plastics (e.g., PE, PP), ensuring no migration to food; (2) Cosmetic Pigments: Meets EU Cosmetics Regulation (EC) No 1223/2009 (restricting heavy metals like lead, mercury, and arsenic) and FDA Cosmetic Ingredients Review (CIR) guidelines. Heavy metal impurities (Pb ≤0.001ppm, Hg ≤0.0001ppm, As ≤0.0005ppm) are well below regulatory limits, making it safe for pigments in foundation, eyeshadow, and nail polish; (3) REACH Compliance: Free of REACH-restricted substances (e.g., cadmium, hexavalent chromium) and has no SVHC (Substances of Very High Concern) above 0.1%—ensuring pigments dispersed with this bead meet global market access requirements. A cosmetics manufacturer used our bead to disperse iron oxide pigments, achieving EU and FDA compliance for its global product line.
